12 Point 8.4 Inch Small Yellow FPC Multi Touch Foil Projected Capacitive

Brand Name : Master Touch

Model Number : MST-MCW-TFS-8.4-STM

Place of Origin : Suzhou, Jiangsu, China

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000~100000pcs/month

Delivery Time : 5-8days

Packaging Details : 55*14*14cm Paper Tube

Product name : Pcap Touch Foil

Controller : STM

Screen Ratio : 4:3

Touch point : Max. 12

View Area : 8.4 inch (customized)

Communication Interface : USB2.0/3.0

Color : Transparent

Touch Technology : Projected Capacitive

Contact Now

Master Touch 8.4 Inch Small Size Multi-touch Yellow FPC Touch Foil

1. Product Description

Master Touch foil products have the following advantages:

  • Using unique sensing and computing technology, accurate positioning, can be used through glass touch and wearing gloves.
  • No mechanical or pressure-sensitive components, durable; insensitive to external light sources, changes in ambient light will not affect work.

2. Technical Datasheet

Part No.: MST-MCW-TFS-8.4-STM
BOM Code: 1.11.084.01.0000
Project Code: M084S
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STM Series
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 6mm
Screen Ratio: 4:3
Foil Size: 193.75*151.05mm
Active Area: 170.00*130.00mm
Controller Size: 87.0*47.0mm
FPC direction: Short side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~12 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP ,Windows 7,Windows 8, Windows10 (32/64)
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

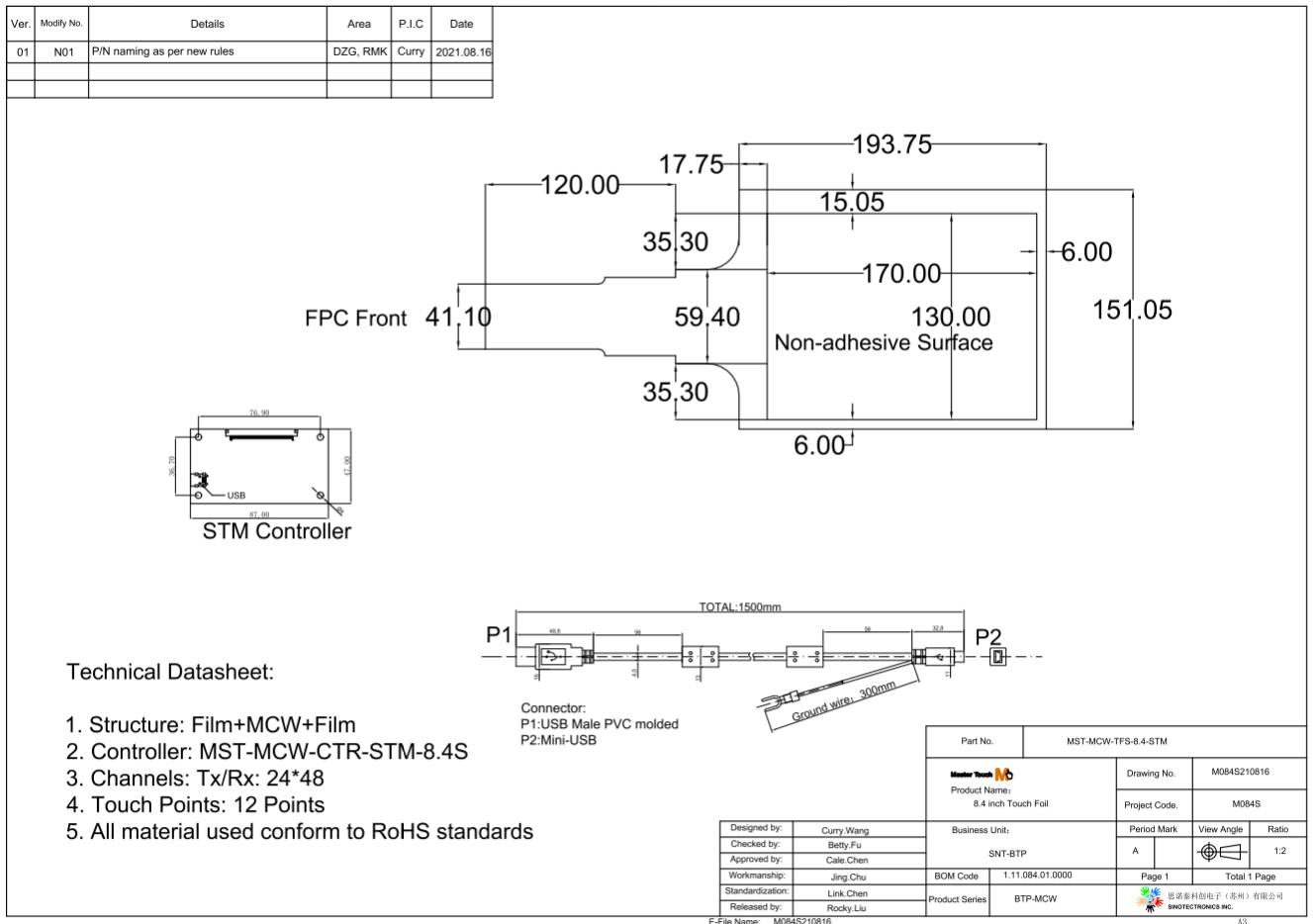

3. Drawing

12 Point 8.4 Inch Small Yellow FPC Multi Touch Foil Projected Capacitive

4. Details

12 Point 8.4 Inch Small Yellow FPC Multi Touch Foil Projected Capacitive

5. Providing Solutions

Touch Foil
Touch Foil with Cover Glass
Touch Foil with Cover Glass and Metal Chassis
High brightness LCD

6. Capacitive Touch Foil Applications

POS Machine

Industrial Control industry

Touch Monitor

Information Kiosks

Gaming, Lottery ect

Multimedia marketing

Banking / Fanancial System

Touch Table

7.Target User

Touch Foil user: Zytronic/Displax distributor/end-user
System Integrator: application for industrial/digital signage/ video wall
Fields connected: Smart City/ Exhibition/ Self-service Kiosks/Educational Equipments

8. FAQ

12 Point 8.4 Inch Small Yellow FPC Multi Touch Foil Projected Capacitive
